Fig
No. |
Index
No. |
S
t
o
c
k
e
d
|
Group - Fixed Equipment |
Units
per
assembly |
Blue
prints |
| Major Assembly - Wing Bomb Installation |
| Part number |
Description |
| 124 |
4 |
|
87-681-1063 |
Clevis |
1 |
 |
| 124 |
29 |
|
AN668-2 |
Terminal - Eye and cable |
1 |
|
| 124 |
32 |
|
87-70-027 |
Fairlead |
2 |
|
| 124 |
33 |
|
87-681-1031-3-49 |
Cable and Terminal Assembly |
2 |
|
| 124 |
34 |
|
87-681-1031-8-48.20 |
Cable |
1 |
|
| 124 |
4 |
|
87-681-1063 |
Clevis |
1 |
|
| 124 |
29 |
|
AN668-2 |
Terminal - Eye and cable |
1 |
|
| 124 |
35 |
|
87-681-1031-3-31 |
Cable and Terminal Assembly |
1 |
|
| 124 |
36 |
|
87-681-1031-3-30.20 |
Cable |
1 |
|
| 124 |
4 |
|
87-681-1063 |
Clevis |
1 |
|
| 124 |
29 |
|
AN668-2 |
Terminal - Eye and cable |
1 |
|
| 124 |
37 |
|

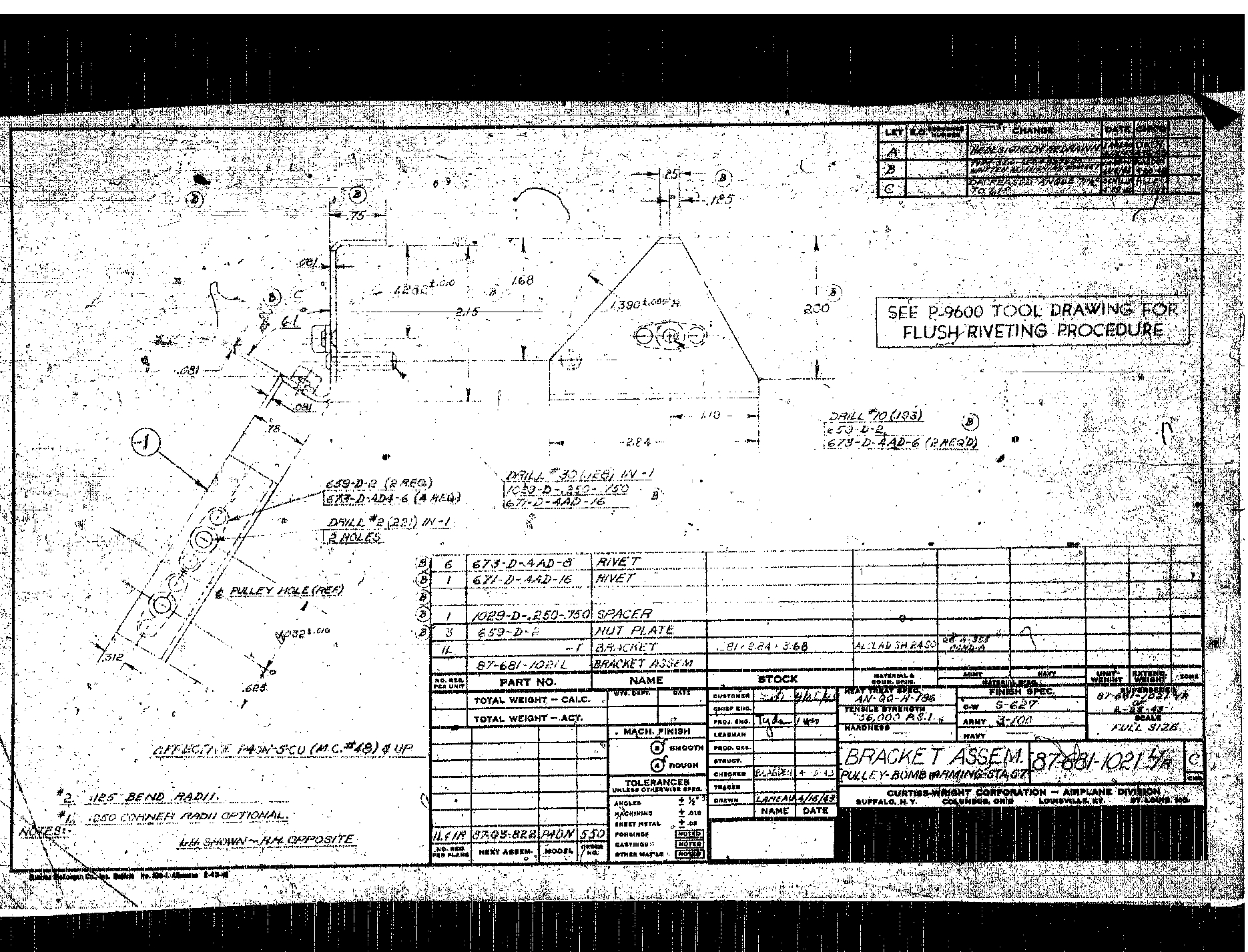

87-681-1021L |
Bracket - Pulley |
1 |
|
| 124 |
38 |
|
87-681-1021R |
Bracket - Pulley |
1 |
|
| 124 |
39 |
|

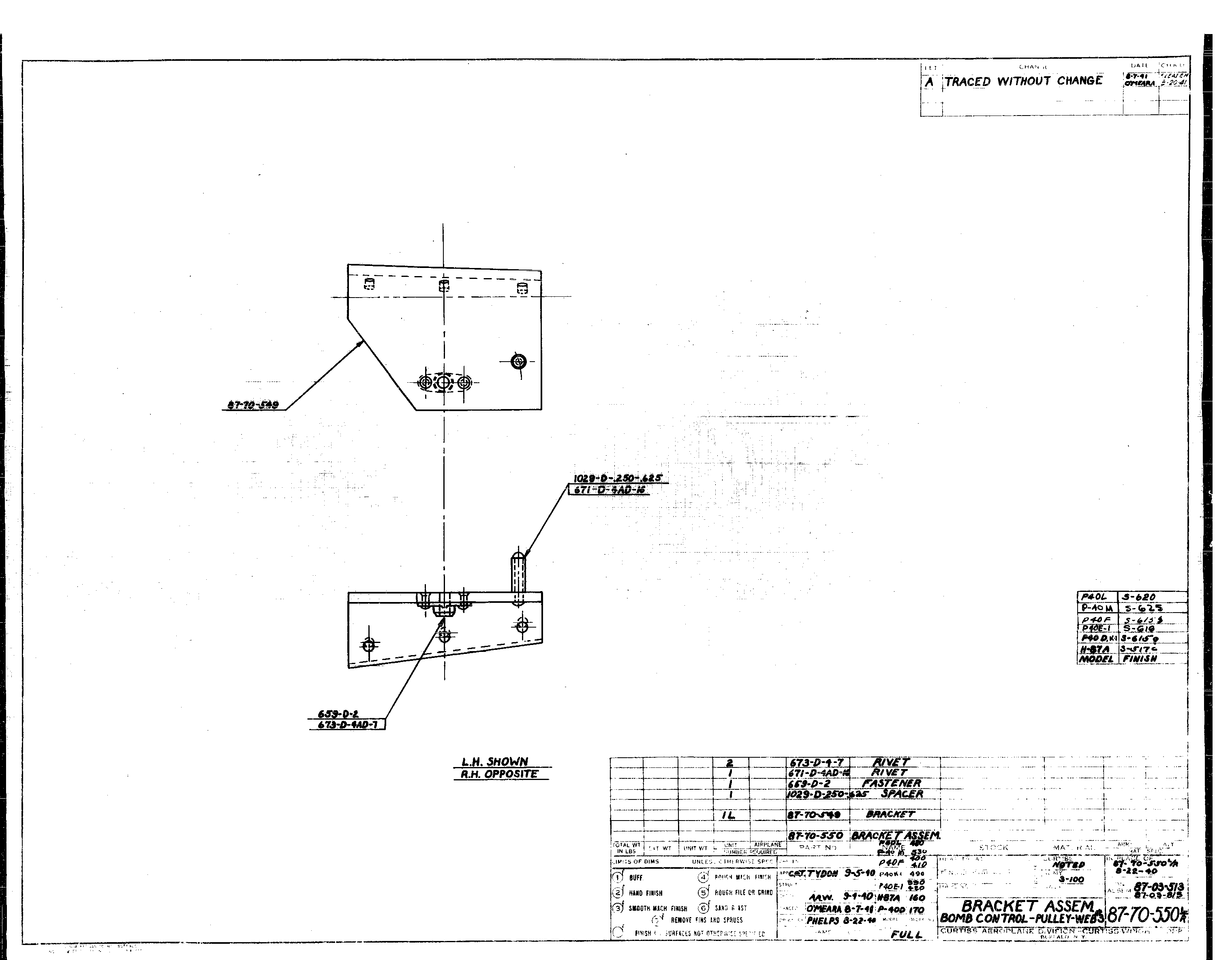

87-70-550L |
Bracket - Pulley |
1 |
|
| 124 |
39 |
|
87-70-550R |
Bracket - Pulley |
1 |
|
| 124 |
40 |
|
AN210-2A |
Pulley |
6 |
|
| 124 |
41 |
|
AN23-10A |
Bolt |
4 |
|
| 124 |
11 |
|
AN960-10 |
Washer |
4 |
|
| 124 |
12 |
|
AN364-1032 |
Nut |
4 |
|
| 124 |
22 |
|
AN23-17A |
Bolt |
2 |
|
| 124 |
11 |
|
AN960-10 |
Washer |
2 |
|
| 124 |
12 |
|
AN364-1032 |
Nut |
2 |
|
| 124 |
42 |
|
87-681-1031-1-60 |
Cable and Terminal Assembly |
1 |
|
| 124 |
43 |
|
87-681-1031-6-58.10 |
Cable |
1 |
|
| 124 |
4 |
|
87-681-1063 |
Clevis |
1 |
|
| 124 |
44 |
|
648 44-14 |
Clevis Assembly |
1 |
|
| 124 |
45 |
|
87-681-1031-1-90 |
Cable and Terminal Assembly |
1 |
|
| 124 |
46 |
|
87-681-1031-6-88.10 |
Cable |
1 |
|
| 124 |
4 |
|
87-681-1063 |
Clevis |
1 |
|
| 124 |
44 |
|
648 44-14 |
Clevis Assembly |
1 |
|
| 124 |
47 |
|
87-70-040 |
Block - Chafing |
1 |
|
| 124 |
48 |
|
AN526-832-12 |
Screw |
3 |
|
| 124 |
49 |
|
AN960-8 |
Washer |
3 |
|
| 124 |
50 |
|
AN365-832 |
Nut |
3 |
|
| 124 |
51 |
|
87-681-1033L |
Support Assembly |
1 |
, |
| 124 |
51 |
|
87-681-1033R |
Support Assembly |
1 |
, |
| 124 |
52 |
|
87-681-1031-3-67 |
Cable and Terminal Assembly |
1 |
|
| 124 |
53 |
|
87-681-1031-8-66.20 |
Cable |
1 |
|
| 124 |
4 |
|
87-681-1063 |
Clevis |
1 |
|
| 124 |
29 |
|
AN668-2 |
Terminal - Eye and cable |
1 |
|
| 124 |
54 |
|
87-45-533-10 |
Shackle |
1 |
|
| 124 |
55 |
|
87-45-533-5 |
Extesion |
1 |
|
|
|
