Multipage results:

Fig
No.
Index
No.
S
t
o
c
k
e
d
Group - Fuselage Units
per
assembly
Blue
prints
Major Assembly - Fuselage Assembly
Part number Description

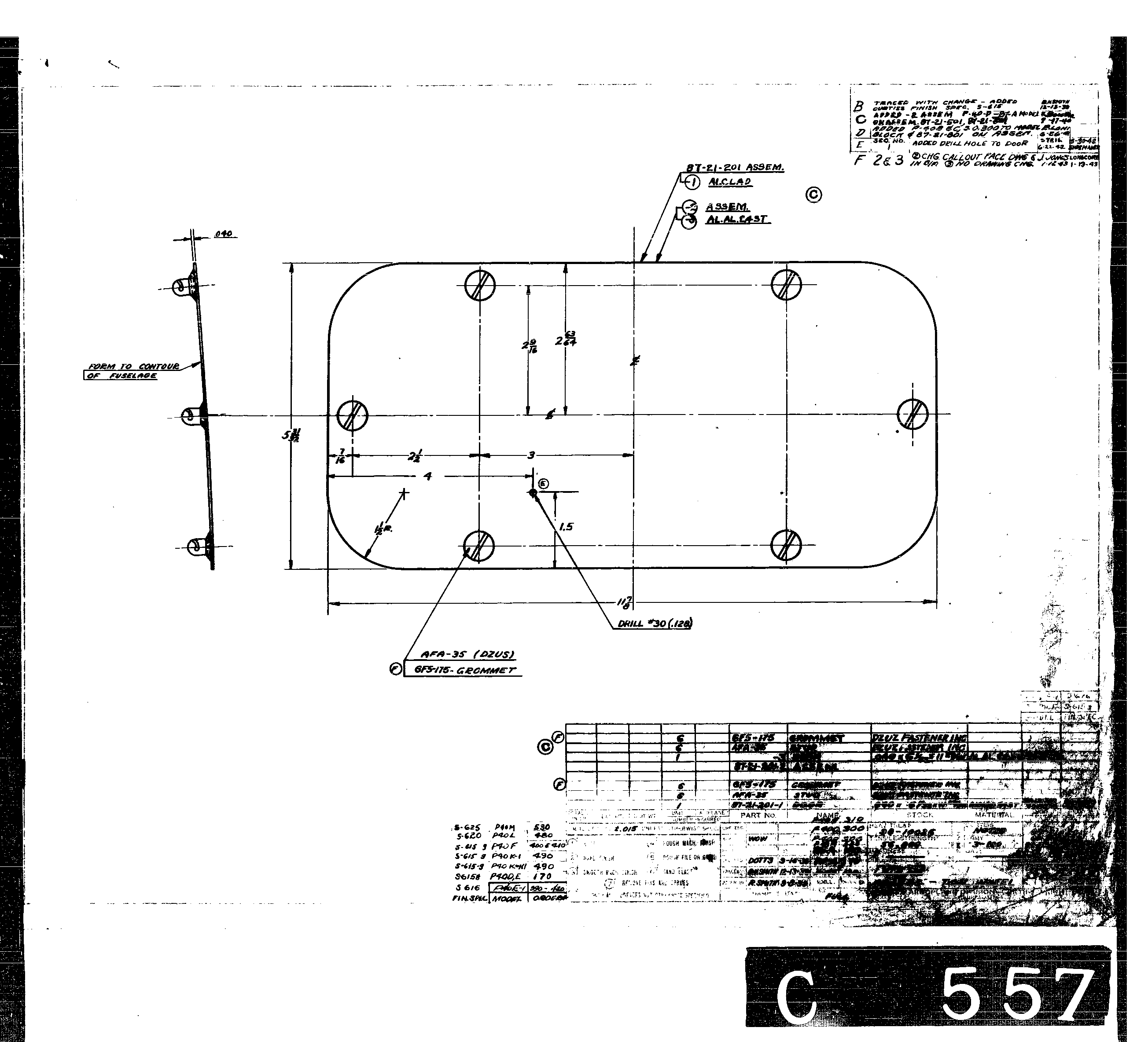

22 66    87-21-522-2       Cover 1
22 67    AFA35       Fastener (Dzus) 1
22 55    375F       Grommet (Dzus) 1

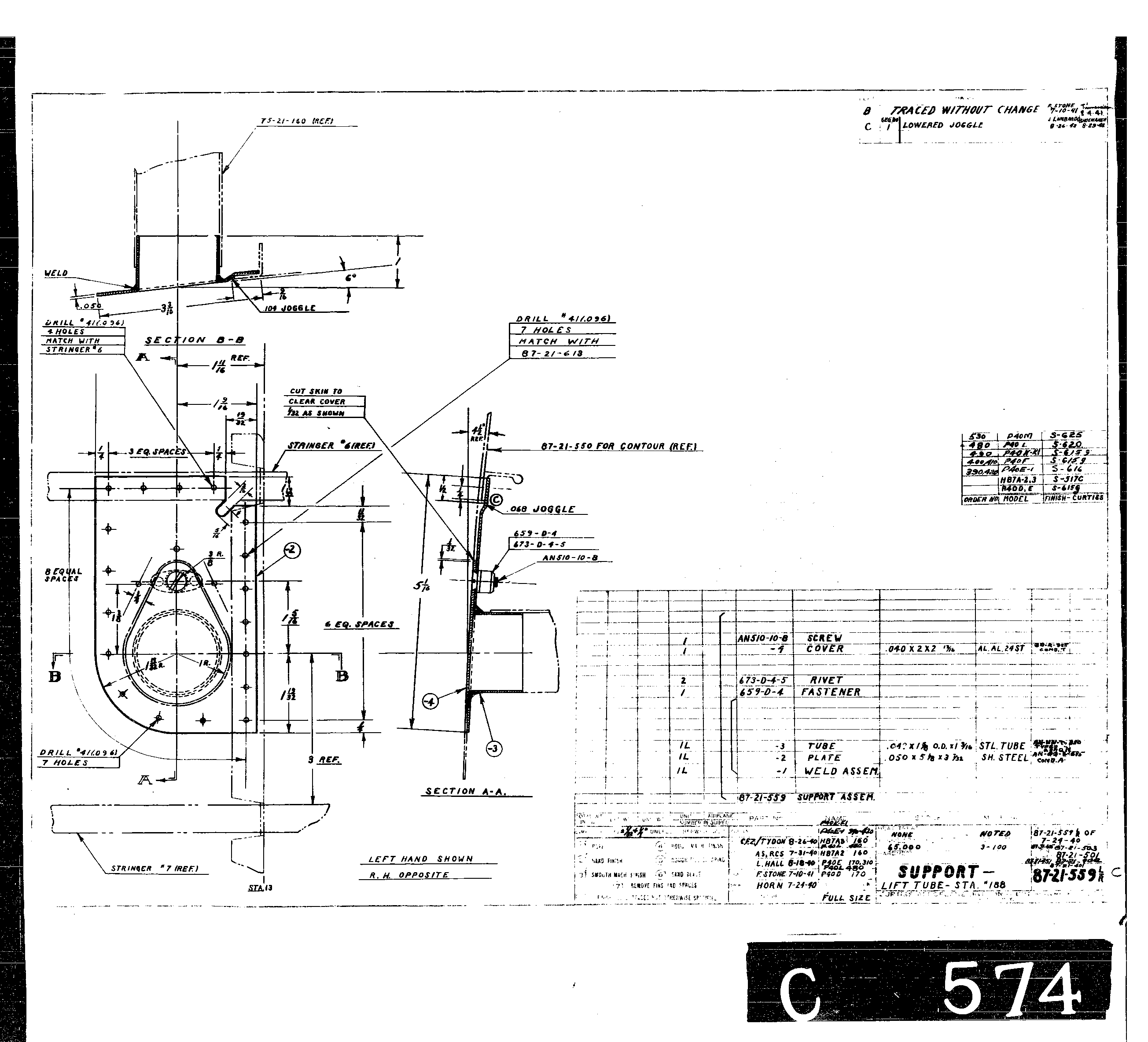

22 68    87-21-559L   Support Assembly - Lift tube 1
22 69    87-21-559R   Support Assembly - Lift tube 1
22 70    87-21-559-1L     Weld Assembly LH 1
22 71    87-21-559-1R     Weld Assembly RH 1
22 72    87-21-559-4     Cover 1
22 73    AN510-10-8     Screw 1

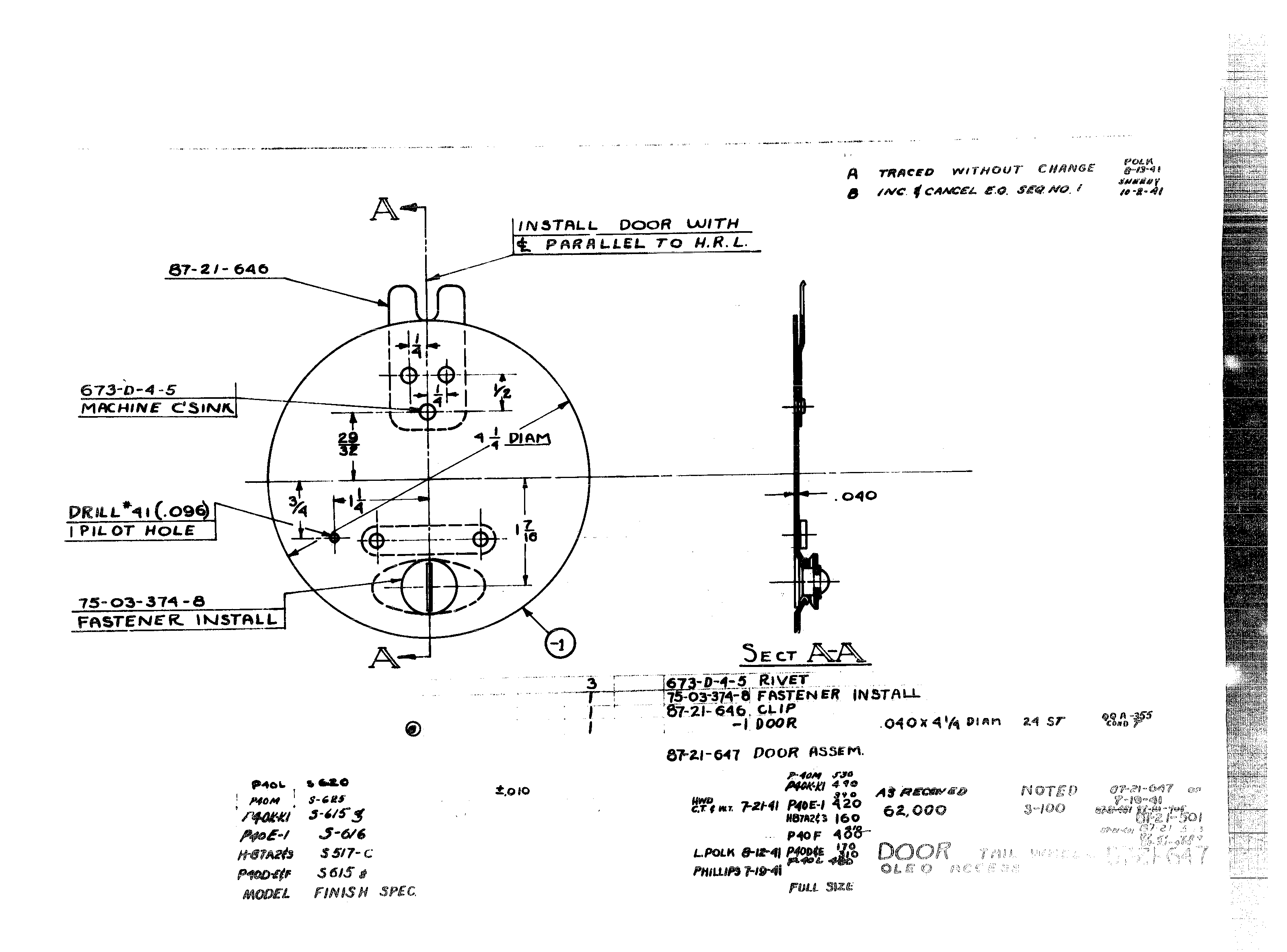

22 74    87-21-647   Door Assembly 4
22 75    87-21-647-1     Door 4
22 76    75-03-374-8     Fastener Installation 4
22 77    87-21-201   Door Assembly - Tail wheel access 2
22 78    87-21-201-1     Door 1
22 67    AFA35     Fastener (Dzus) 6
22 48    GF5-175     Grommet (Dzus) 6
22 79    75-21-069-1   Fitting 2   ,
22 80    AN24-11A   Bolt 4
22 81    AN960-416   Washer 4
22 82    AN364-428   Nut 4
22 83    75-21-069-2   Fitting 2   ,
22 84    AN24-10A   Bolt 2
22 80    AN24-11A   Bolt 2
22 81    AN960-416   Washer 4
22 82    AN365-428   Nut 4
22 83    75-21-069-2   Fitting 2   ,
22 84    AN24-10A   Bolt 2
22 80    AN24-11A   Bolt 2
22 81    AN960-416   Washer 4
22 82    AN960-416   Washer 4

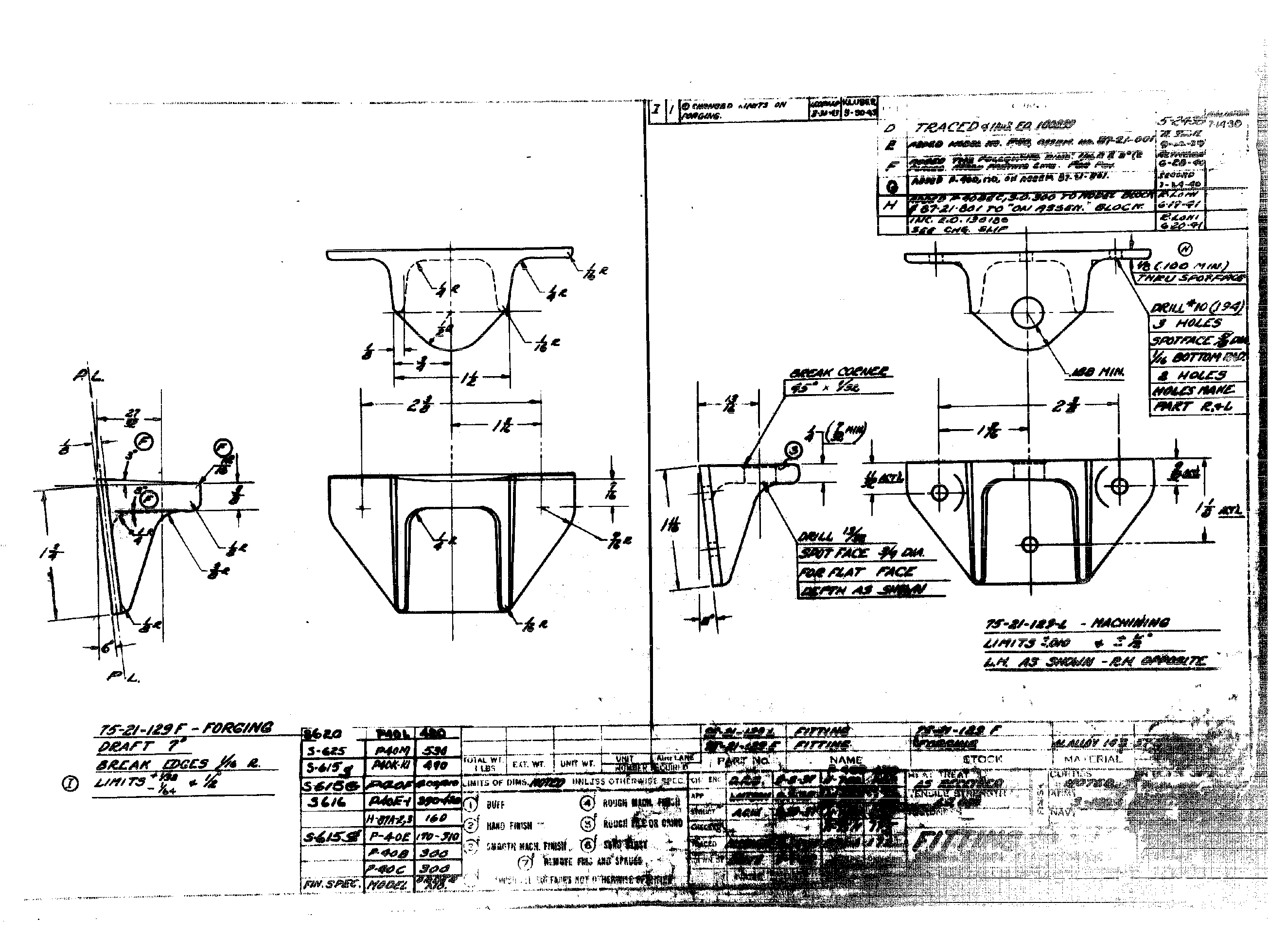

22 85    75-21-129L   Fitting 1   ,,
22 86    75-21-129R   Fitting 1   ,,
22 87    AN24-9A   Bolt 2
22 88    AN24-8A   Bolt 2
22 81    AN960-416   Washer 6
22 82    AN364-428   Nut 6

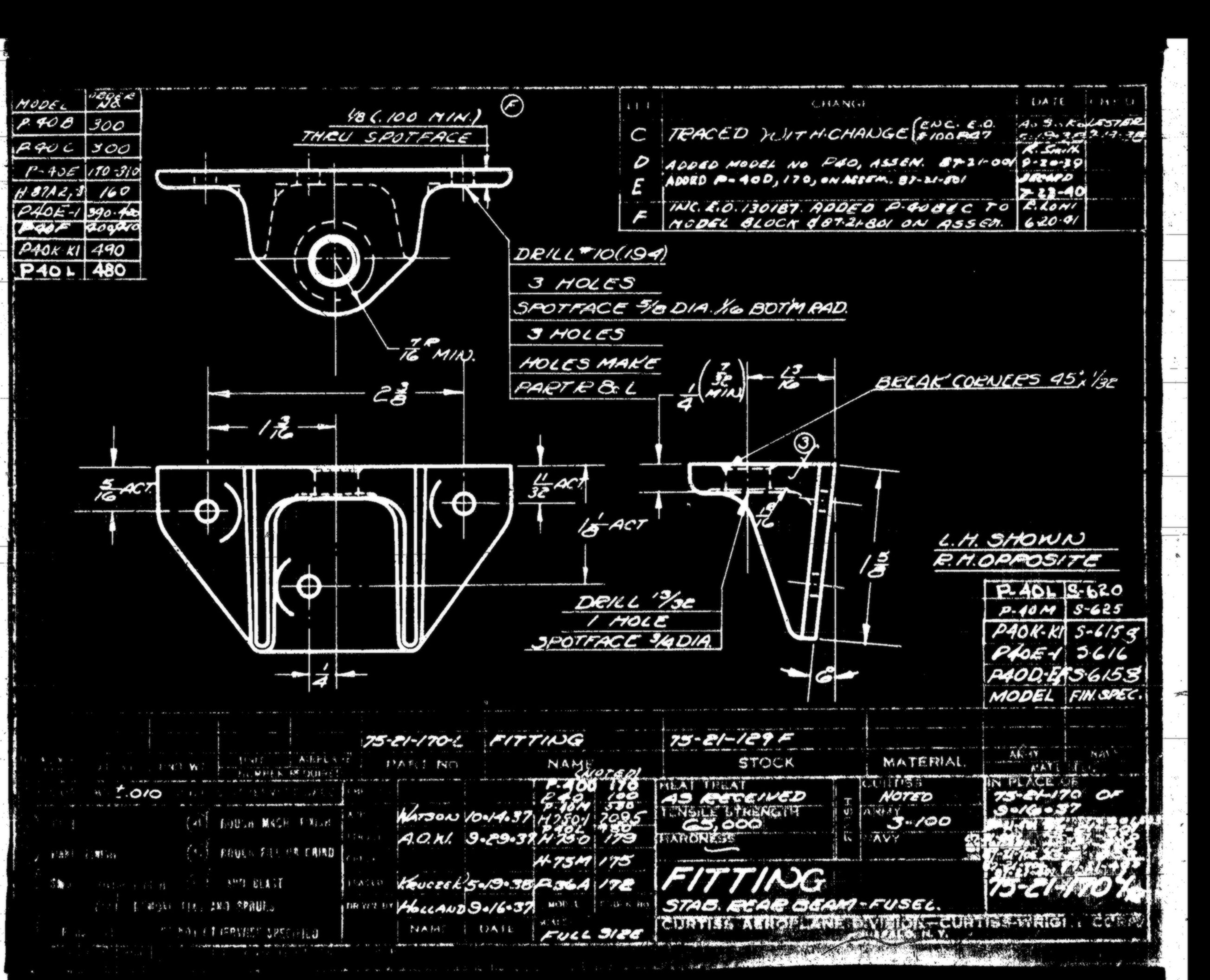

22 89    75-21-170L   Fitting 1
22 90    75-21-170R   Fitting 1
22 88    AN24-8A   Bolt 6
22 81    AN960-416   Washer 6
22 82    AN364-428   Nut 6
22 91    87-21-524L   Door Assembly - Tail wheel (See Fig. 37) 1   ,,,
