No. |
Index
No. |
S
t
o
c
k
e
d
|
Group - Fixed Equipment |
Units
per
assembly |
Blue
prints |
| Major Assembly - Oil System Installation |
| Part number |
Description |
| 112 |
114 |
|
AN380-2-2 |
Pin - Cotter |
1 |
|
| 112 |
115 |
|
87-429-1042 |

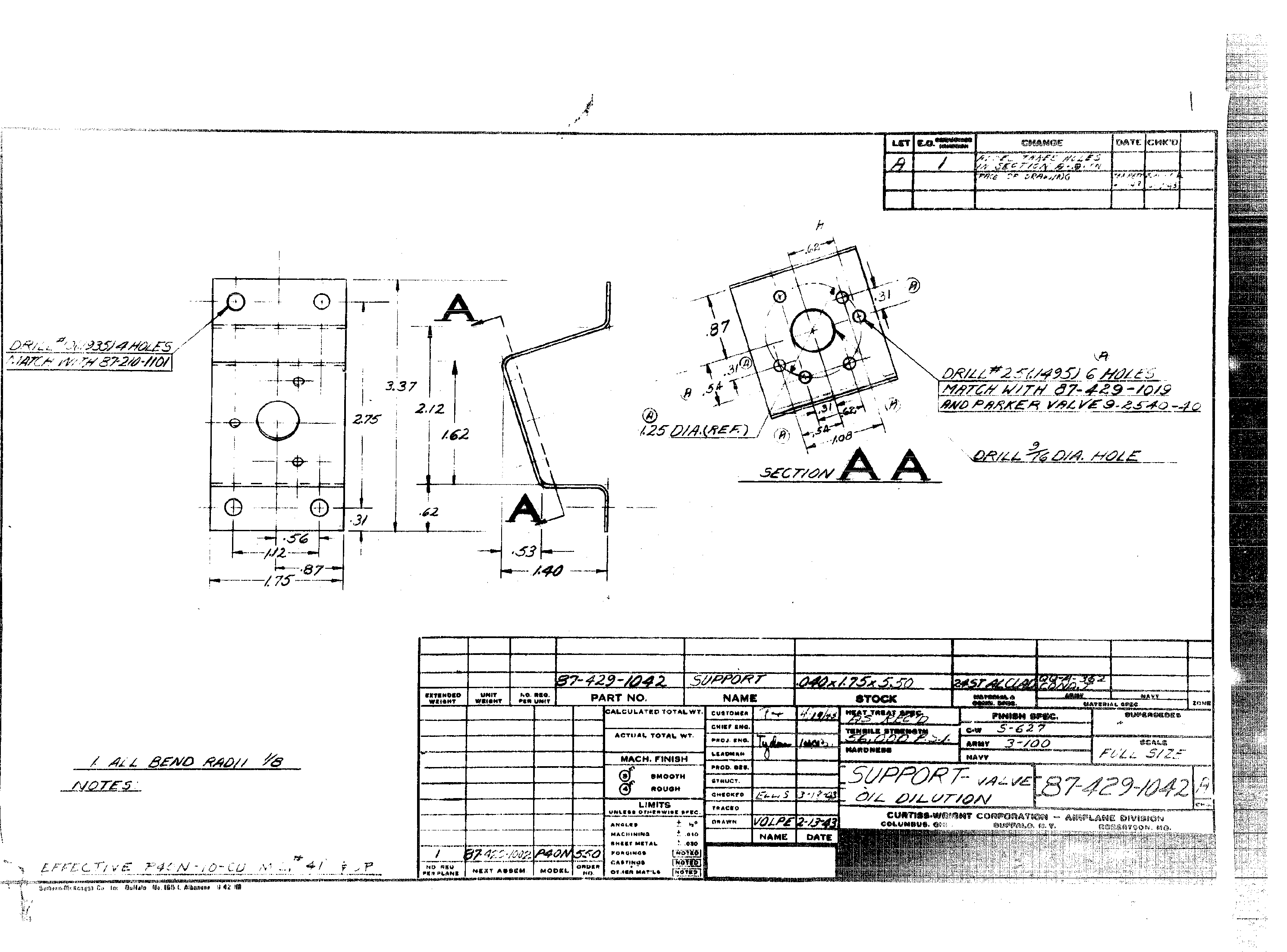

Cupport - Dilution valve |
1 |
 |
| 112 |
66 |
|
AN520-10-10 |
Screw |
4 |
|
| 112 |
116 |
|
87-429-1019 |
Valve - Oil dilution (See figure 115) |
1 |
|
| 112 |
117 |
|
AN500-6-24 |
Screw |
3 |
|
| 112 |
109 |
|
AN960-6 |
Washer |
3 |
|
| 112 |
110 |
|
AN365-632 |
Nut |
3 |
|
| 112 |
118 |
|
AN844-4 |
Elbow |
1 |
|
| 112 |
119 |
|
AN842-4 |
Elbow |
1 |
|
| 112 |
120 |
|
87-420-1032-.25-3.50 |
Hose |
1 |
|
| 112 |
121 |
|
QS100M4 |
Clamp (Aero Seal) |
2 |
|
| 112 |
122 |
|
87-429-1003-18 |
Tube |
1 |
|
| 112 |
120 |
|
87-420-1032-.25-3.50 |
Hose |
1 |
|
| 112 |
121 |
|
QS100M4 |
Clamp (Aero Seal) |
2 |
|
| 112 |
123 |
|
AN844-4D |
Elbow |
1 |
|
| 112 |
124 |
|
87-429-1003-17 |
Tube |
1 |
|
| 112 |
125 |
|
87-420-1032-.25-3.00 |
Hose |
2 |
|
| 112 |
121 |
|
QS100M4 |
Clamp (Aero Seal) |
4 |
|
| 112 |
126 |
|
87-429-1021 |
Nipple - Hose |
1 |
|
| 112 |
127 |
|
AN914-1 |
Elbow |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
