Fig
No. |
Index
No. |
S
t
o
c
k
e
d
|
Group - Fuselage |
Units
per
assembly |
Blue
prints |
| Major Assembly - Fuselage Assembly - Rear Vision Installation |
| Part number |
Description |
| 35 |
19 |
|
AN960-8 |
Washer |
2 |
|
| 35 |
20 |
|
AN526-832 |
Nut |
2 |
|
| 35 |
30 |
|
1103D10 |
Bolt |
4 |
|
| 35 |
31 |
|
AN960D-10L |
Washer |
4 |
|
| 35 |
17 |
|
AN364-1032 |
Nut |
2 |
|
| 35 |
32 |
|
87-210-1058L |
Gusset |
1 |
 |
| 35 |
33 |
|
87-210-1058R |
Gusset |
1 |
|
| 35 |
29 |
|
100DS10 |
Screw |
2 |
|
| 35 |
19 |
|
AN960-8 |
Washer |
2 |
|
| 35 |
20 |
|
AN526-832 |
Nut |
2 |
|

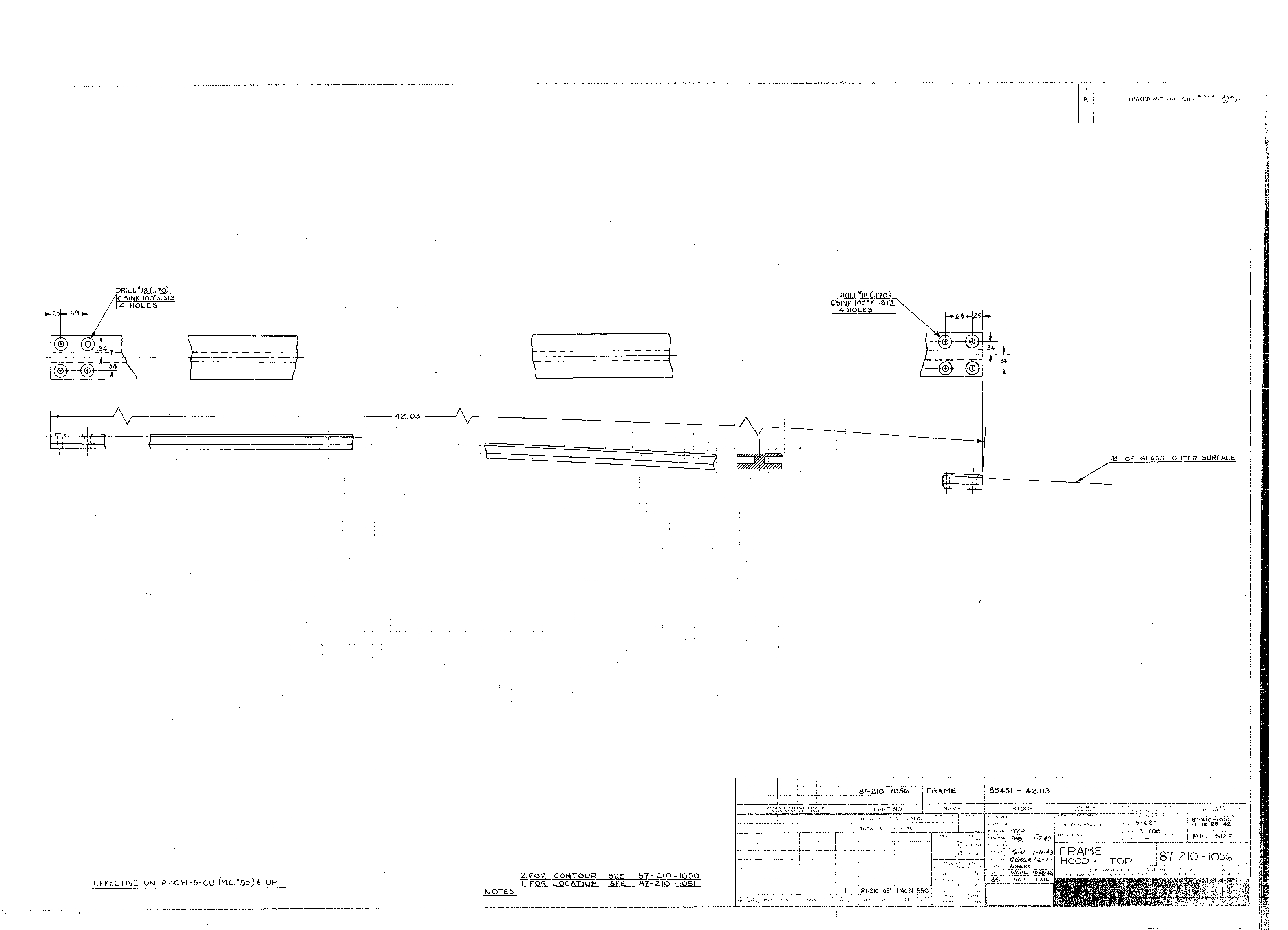

| 35 |
34 |
|
87-210-1056 |
Frame |
1 |
|
| 35 |
35 |
|
1100DS12 |
Screw |
2 |
|
| 35 |
19 |
|
AN960-8 |
Washer |
2 |
|
| 35 |
20 |
|
AN526-832 |
Nut |
2 |
|
| 35 |
36 |
|
87-210-1052L |
Glass |
1 |
,,, |

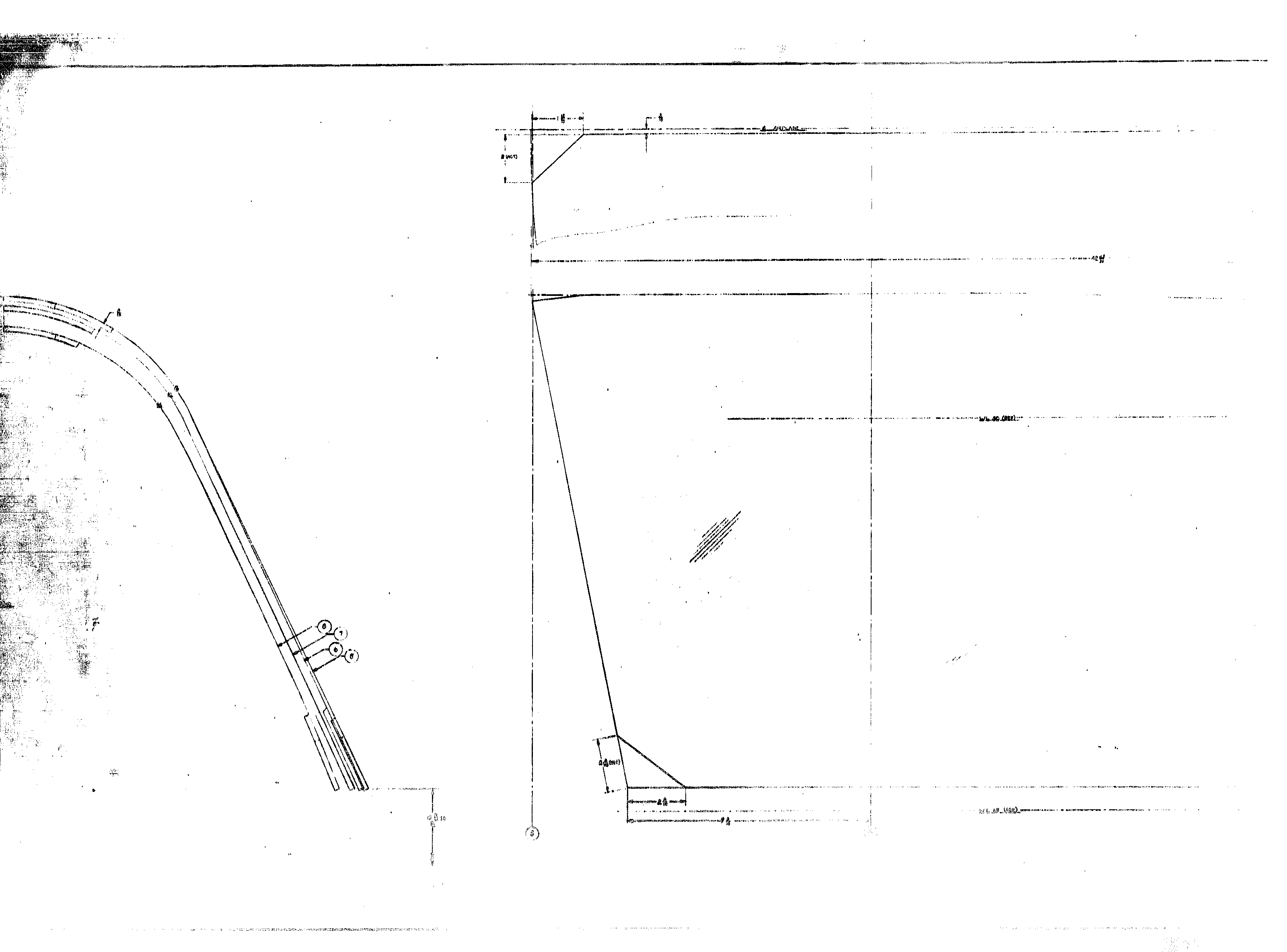

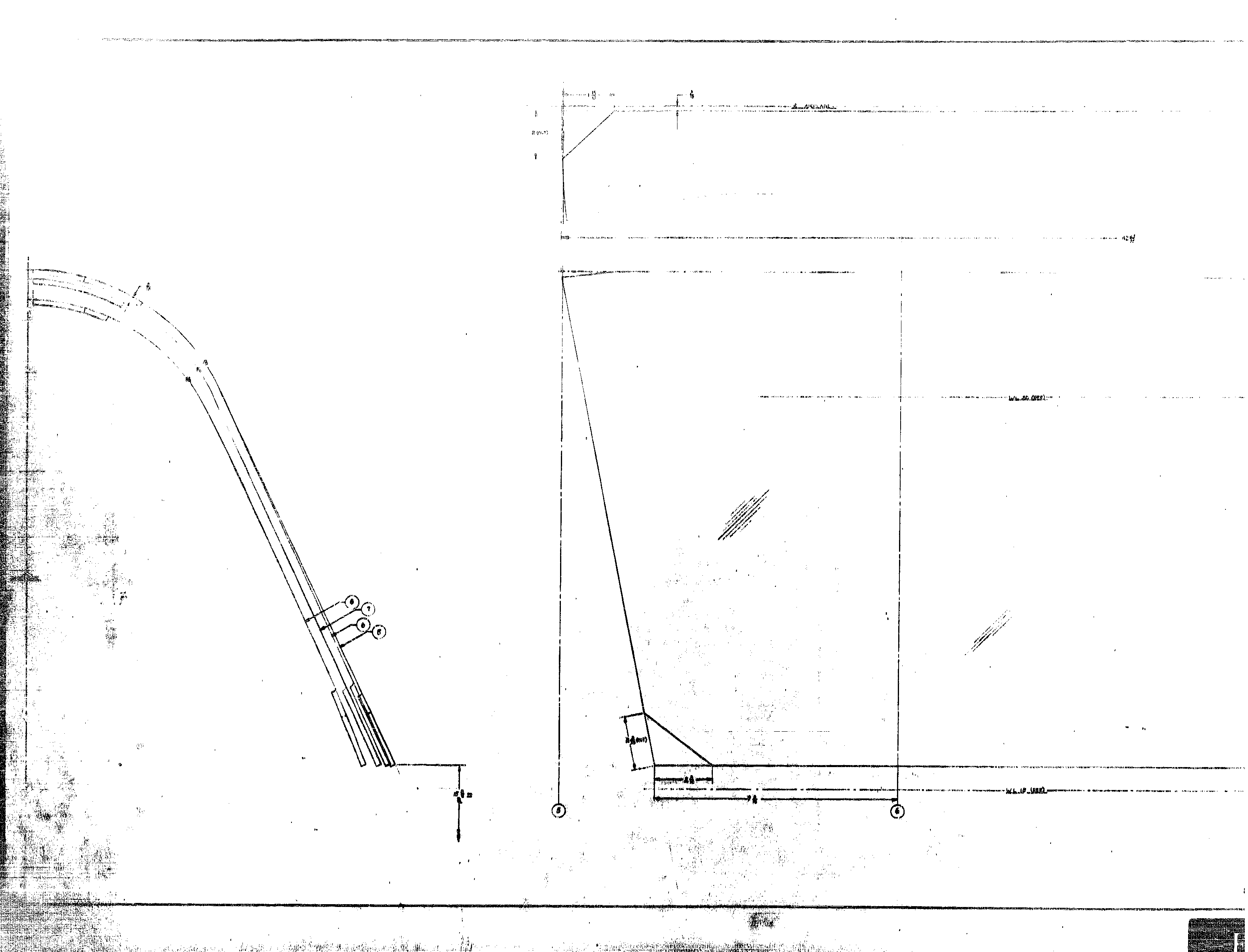

| 35 |
37 |
|
87-210-1052R |
Glass |
1 |
,,, |

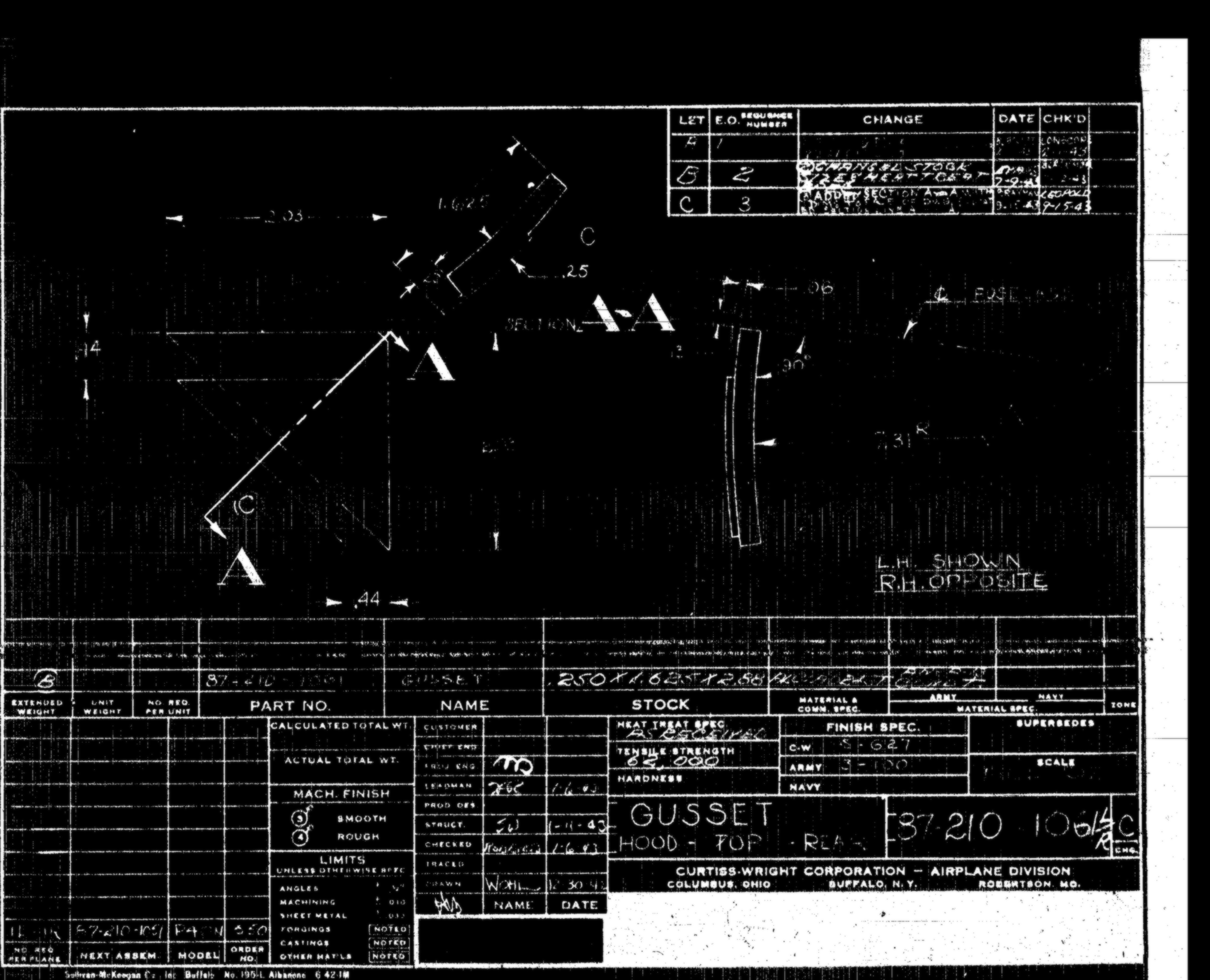

| 35 |
38 |
|
87-210-1061L |
Gusset |
1 |
|
| 35 |
39 |
|
87-210-1061R |
Gusset |
1 |
|
| 35 |
35 |
|
1100DS12 |
Screw |
2 |
|
| 35 |
19 |
|
AN960-8 |
Washer |
2 |
|
| 35 |
20 |
|
AN526-832 |
Nut |
2 |
|
| 35 |
40 |
|

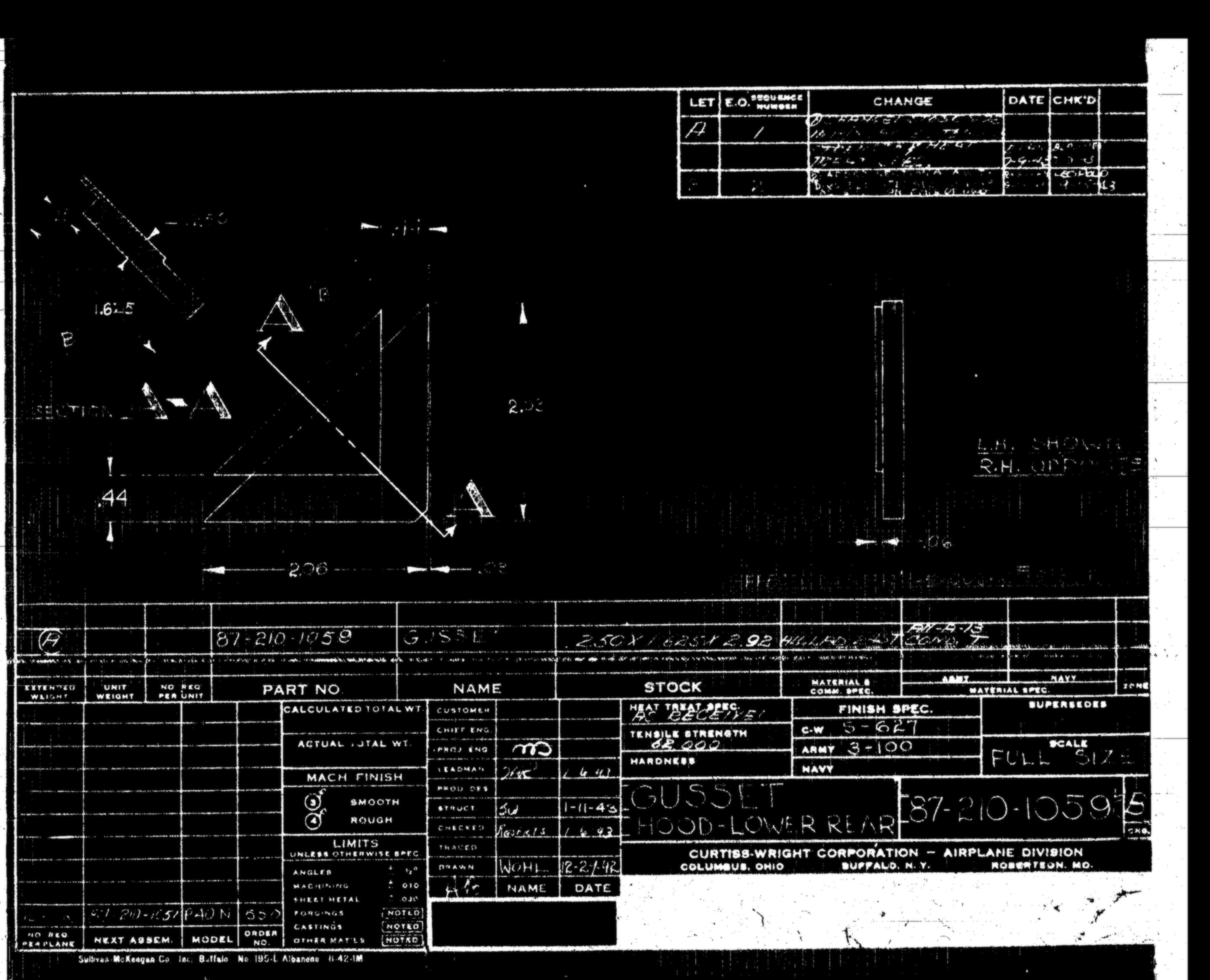

87-210-1059L |
Gusset |
1 |
|
| 35 |
41 |
|
87-210-1059R |
Gusset |
1 |
|
| 35 |
29 |
|
100DS10 |
Screw |
2 |
|
| 35 |
19 |
|
AN960-8 |
Washer |
2 |
|
| 35 |
20 |
|
AN526-832 |
Nut |
2 |
|

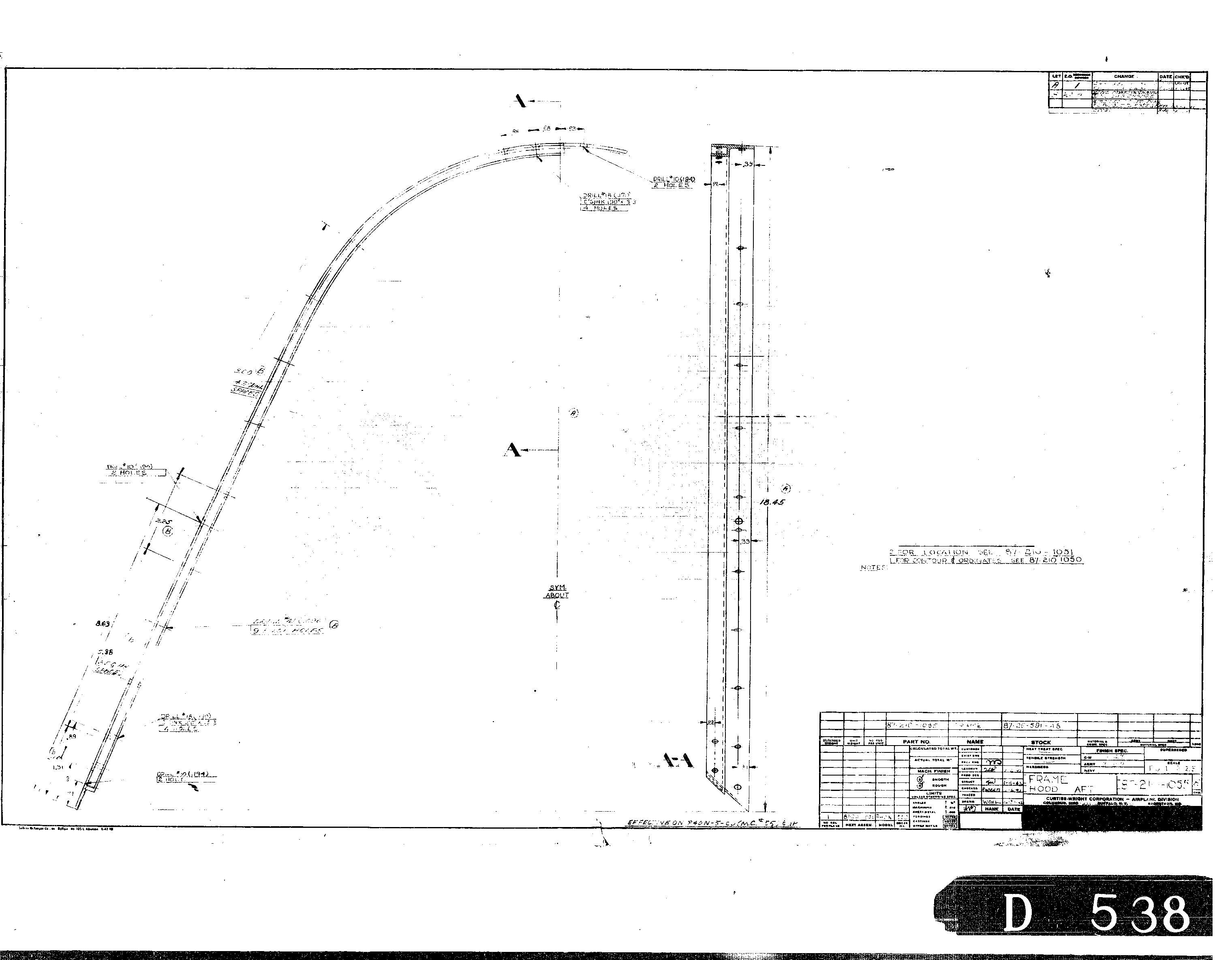

| 35 |
42 |
|
87-210-1055 |
Frame |
1 |
|
| 35 |
29 |
|
100DS10 |
Screw |
8 |
|
| 35 |
19 |
|
AN960-8 |
Washer |
8 |
|
| 35 |
20 |
|
AN526-832 |
Nut |
8 |
|
| 35 |
43 |
|
AN526-1032-10 |
Screw |
8 |
|
| 35 |
44 |
|
87-210-1062-1 |
Strap |
1 |
|
| 35 |
45 |
|
1103DS5A |
Bolt |
4 |
|
| 35 |
46 |
|
1103DS4A |
Bolt |
2 |
|
| 35 |
16 |
|
AN960-8 |
Washer |
2 |
|
| 35 |
17 |
|
AN364-1032 |
Nut |
2 |
|
| 35 |
47 |
|
87-210-1062-2 |
Strap |
1 |
|
| 35 |
45 |
|
1103DS5A |
Bolt |
4 |
|
| 35 |
46 |
|
1103DS4A |
Bolt |
2 |
|
| 35 |
16 |
|
AN960-8 |
Washer |
2 |
|
| 35 |
17 |
|
AN364-1032 |
Nut |
2 |
|
|
|
|
|
|
|
|
|
|
