Fig
No. |
Index
No. |
S
t
o
c
k
e
d
|
Group - Fixed Equipment |
Units
per
assembly |
Blue
prints |
| Major Assembly - Airplane Electrical Installatoin - Main Switch Box Installation |
| Part number |
Description |
| 89 |
47 |
|
AN345-10 |
Nut |
6 |
|
| 89 |
52 |
|
NAS18A6 |
Panel - Connector |
1 |
|
| 89 |
43 |
|
AN515-4-8 |
Screw |
2 |
|
| 89 |
32 |
|
AN365-440 |
Nut |
2 |
|
| 89 |
45 |
|
NAS20-10-12 |
Screw |
6 |
|
| 89 |
46 |
|
AN365-1032 |
Nut |
6 |
|
| 89 |
47 |
|
AN345-10 |
Nut |
6 |
|
| 89 |
54 |
|
FU39 |
Post - Fuse |
1 |
|
| 89 |
55 |
|
NAF1034-4-5 |
Fuse |
1 |
|
| 89 |
56 |
|
NAF1035-4 |
Clip - Fuse |
2 |
|
| 89 |
55 |
|
NAF1034-4-5 |
Fuse |
1 |
|
| 89 |
57 |
|
AN515-8-7 |
Screw |
2 |
|
| 89 |
58 |
|
AN960-8 |
Washer |
2 |
|
| 89 |
11 |
|
AN365-832 |
Nut |
2 |
|
| 89 |
59 |
|
Resistor |
Resistor (25 Watts)(Leonard) |
1 |
|
| 89 |
60 |
|
AN515-6-5 |
Screw |
2 |
|
| 89 |
61 |
|
Resistor |
Resistor - Fixed (Type MW 2) (7.4 Watts)(International Resistance) |
1 |
|
| 89 |
60 |
|
AN515-6-5 |
Screw |
2 |
|
| 89 |
36 |
|
AN365-632 |
Nut |
2 |
|
| 89 |
62 |
|
37A5222-13 |
Resistor |
2 |
|

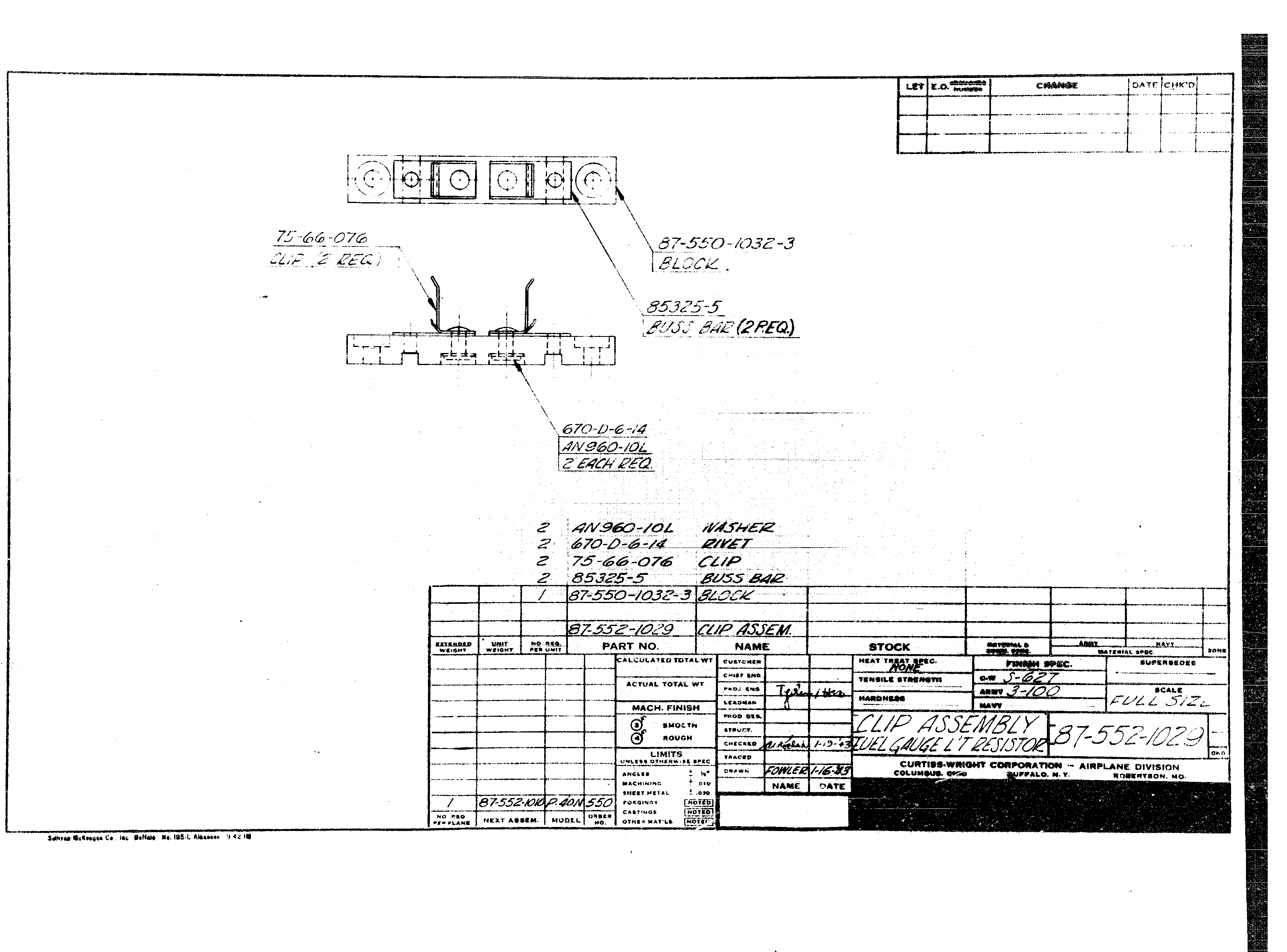

| 89 |
63 |
|
87-552-1029 |
Clip - Assembly |
2 |
 |
| 89 |
45 |
|
NAS20-10-12 |
Screw |
4 |
|
| 89 |
46 |
|
AN365-1032 |
Nut |
4 |
|
| 89 |
47 |
|
AN345B10 |
Nut |
4 |
|
| 89 |
64 |
|
AN515-8-10 |
Screw |
4 |
|
| 89 |
11 |
|
AN365-832 |
Nut |
4 |
|
| 89 |
65 |
|
87-66-569-2 |
Support |
1 |
|
| 89 |
66 |
|
AN500-8-10 |
Screw |
2 |
|
| 89 |
58 |
|
AN960-8 |
Washer |
2 |
|
| 89 |
67 |
|
AN520-10-18 |
Screw |
2 |
|
| 89 |
68 |
|
AN960-10 |
Washer |
2 |
|
| 89 |
46 |
|
AN365-1032 |
Nut |
2 |
|
| 89 |
69 |
|
AN3-11A |
Bolt |
2 |
|
| 89 |
68 |
|
AN960-10 |
Washer |
2 |
|
| 89 |
46 |
|
AN365-1032 |
Nut |
2 |
|
| 89 |
70 |
|
AN73-5 |
Bolt |
2 |
|
| 89 |
71 |
|
AN936B10 |
Washer - Lock |
2 |
|

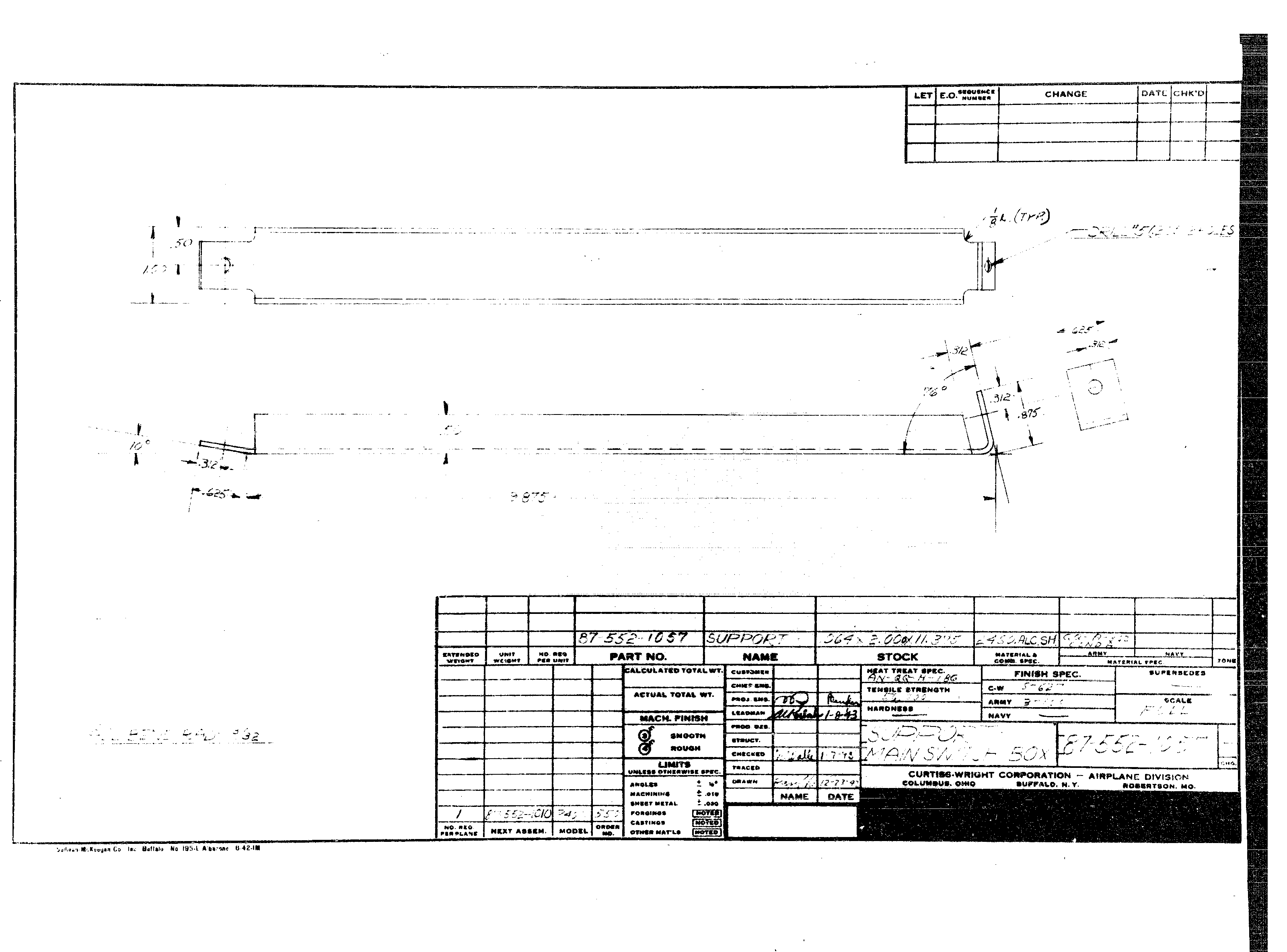

| 89 |
72 |
|
87-552-1057 |
Support |
1 |
|

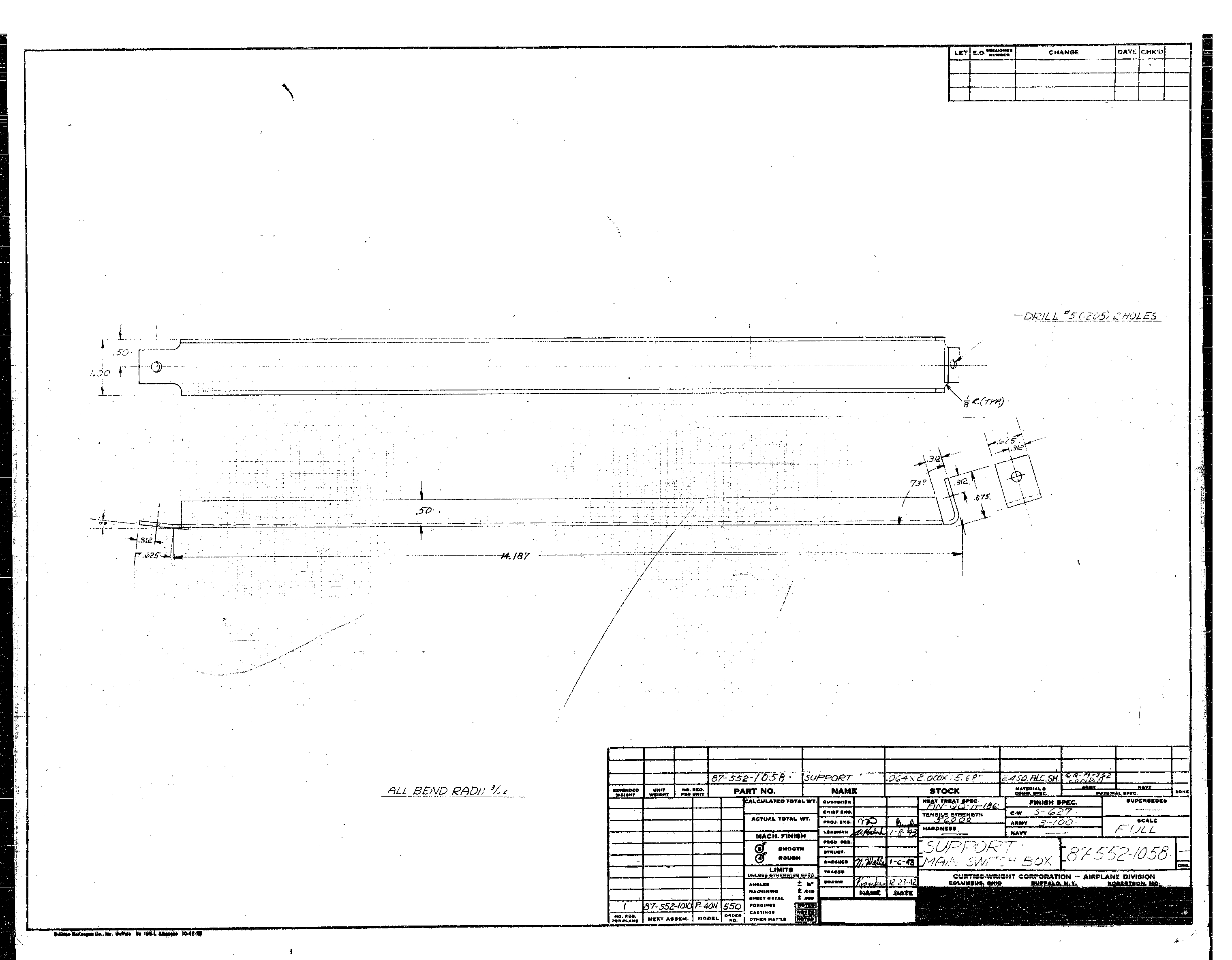

| 89 |
73 |
|
87-552-1058 |
Support |
1 |
|
| 89 |
74 |
|
AN520-10-10 |
Screw |
4 |
|
| 89 |
68 |
|
AN960-10 |
Washer |
4 |
|
| 89 |
46 |
|
AN365-1032 |
Nut |
4 |
|
|
|
