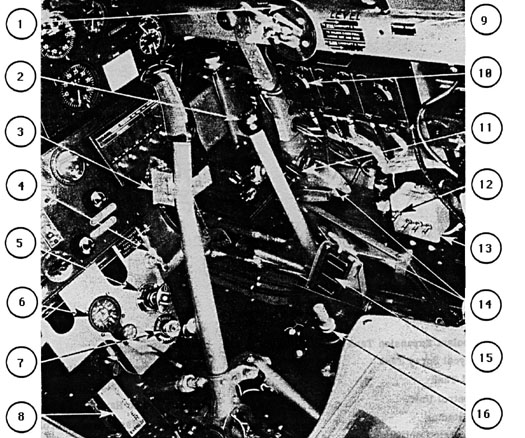

Figure 10 - Cockpit- Right Side - Front (Sheet 2 of 2 sheets)

  • 1 Cabin Control
  • 2 Auxiliary Hydraulic Pump Handle
  • 3 Landing Gear Switch
  • 4 Cockpit Heater Control
  • 5 Engine Primer
  • 6 Oxygen Regulator
  • 7 Windshield Defroster
  • 8 Starter


  • 9 Radio Call Plate
  • 10 Receiver Control
  • 11 Shutter Control
  • 12 Master Recognition Light Switch
  • 13 Signal Lights Switch Box
  • 14 Cowl Shutter Control
  • *15 Signal Discharger Control (if installed)
  • *16 Emergency Hydraulic Pump

*NOTE: The Signal Discharger Control is not installed on airplane, serial No. AF42-45862 and up.

*NOTE: Emergency Hydraulic Hand Pump is not installed on airplanes, serial No. AF42-10265.
